Site Architecture

Vacuum Arches
& Structures.

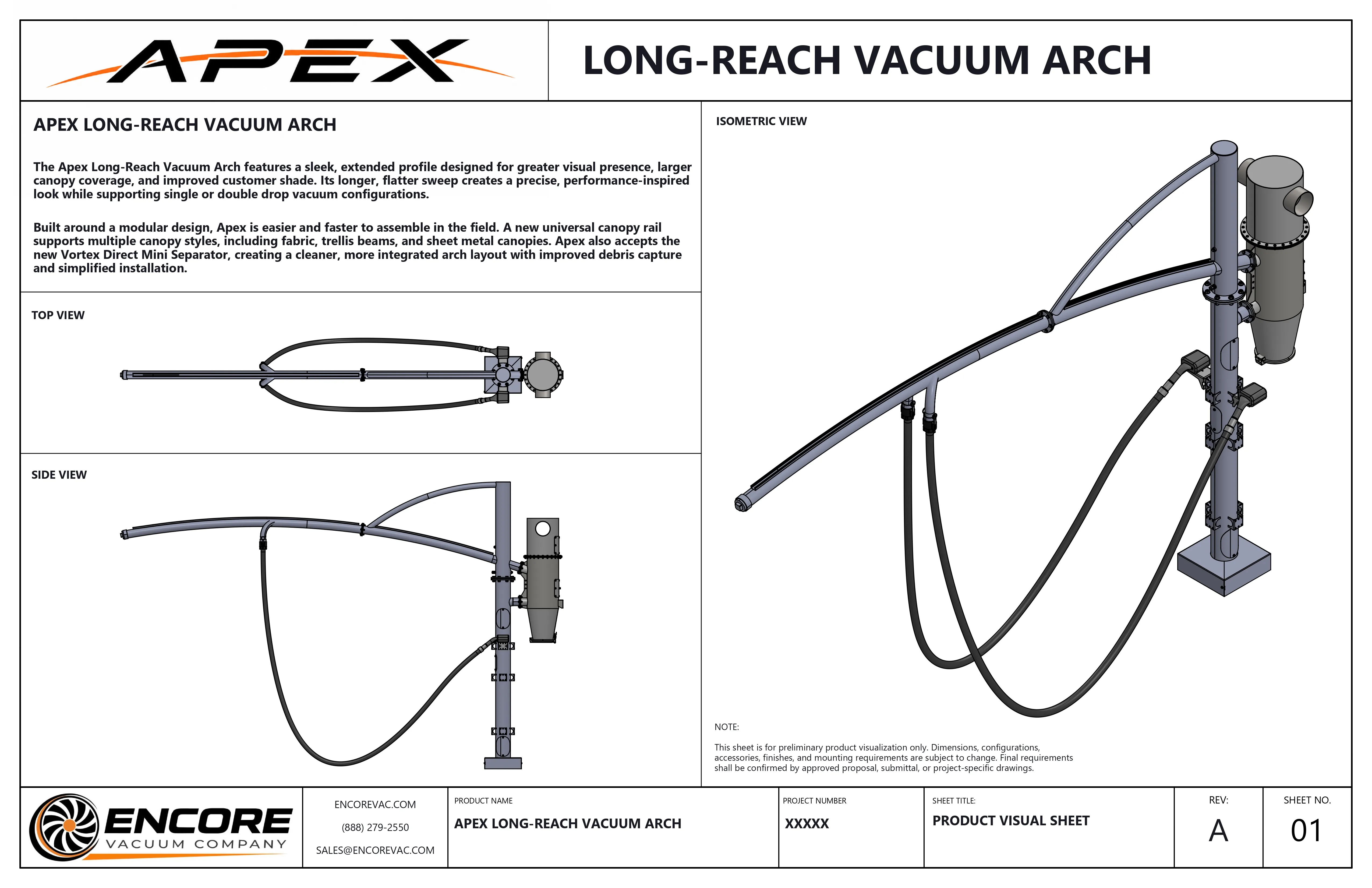

Apex Long-Reach

The flagship arch for high-volume express tunnels.

Apex Long-Reach
  • Extended reach for larger canopy coverage
  • Precise performance-inspired sweep
  • Superior customer shade and presence
Configure Apex Long-Reach

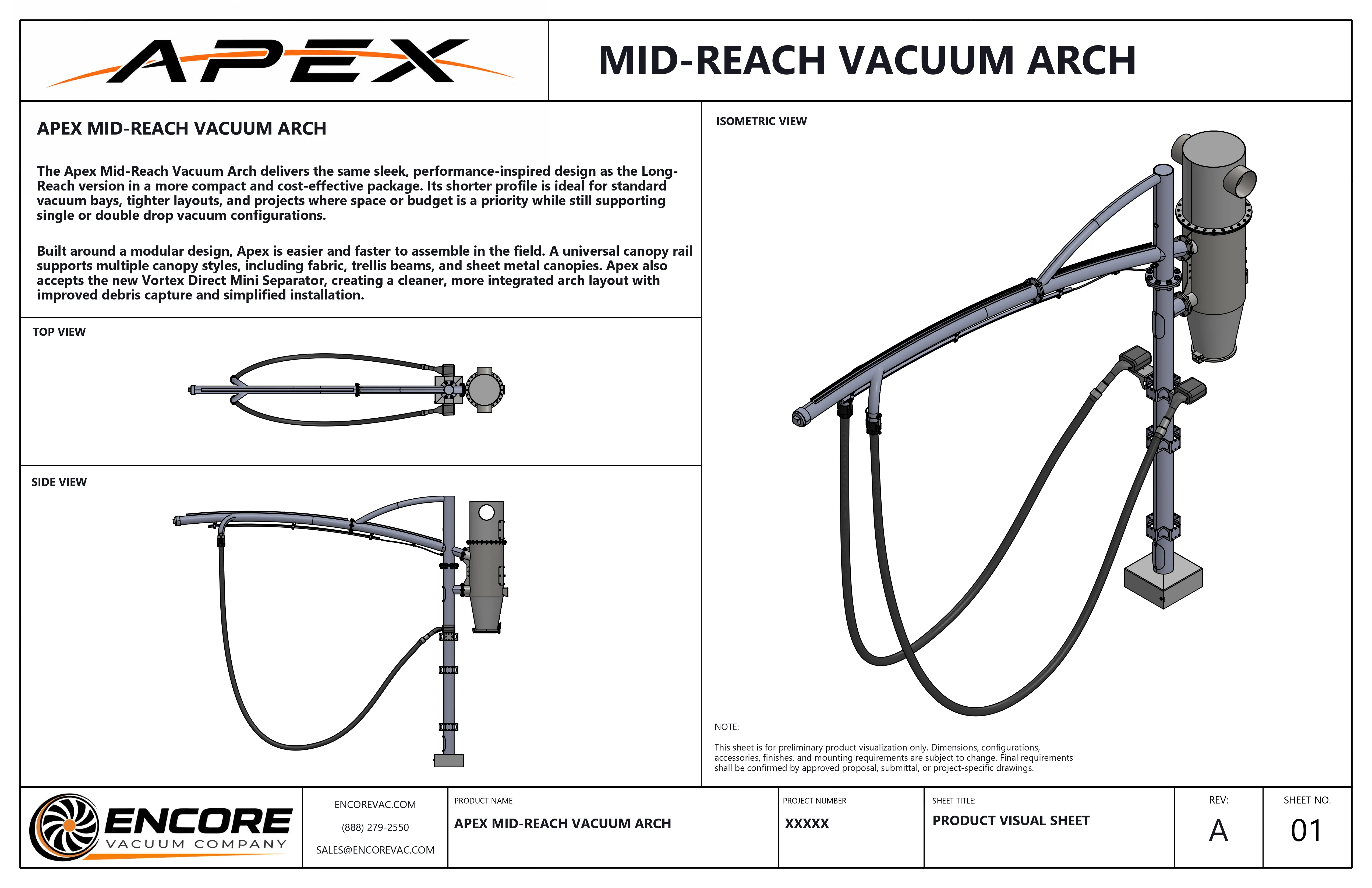

Apex Mid-Reach

Performance design in a compact footprint.

Apex Mid-Reach
  • Ideal for tighter site layouts
  • Modular field assembly
  • Supports single or double drops
Configure Apex Mid-Reach

Modular Field Assembly

Apex structures are engineered for efficiency. The modular design ensures faster field assembly, reducing labor costs and site downtime.

Corrosion Resistance

Every Apex arch is built with Zinc-coated engineered steel and tubing to provide high-end durability and superior corrosion protection in wash environments.

Universal Canopy Rail

A standard universal rail supports multiple canopy styles, including fabric, trellis beams, and sheet metal options.

Cleanest
System Integration.

Apex arches are designed to natively accept the **Vortex Direct Mini Separator**. This eliminates flex hoses and extra fittings for the cleanest layout in the industry.

Explore Vortex Direct
Preliminary Visualization Note

This data is for preliminary product visualization only. Dimensions, configurations, canopy options, accessories, and mounting requirements are subject to change. Final requirements shall be confirmed by approved proposal or drawings.
