Primary Separation

Filter
Separators.

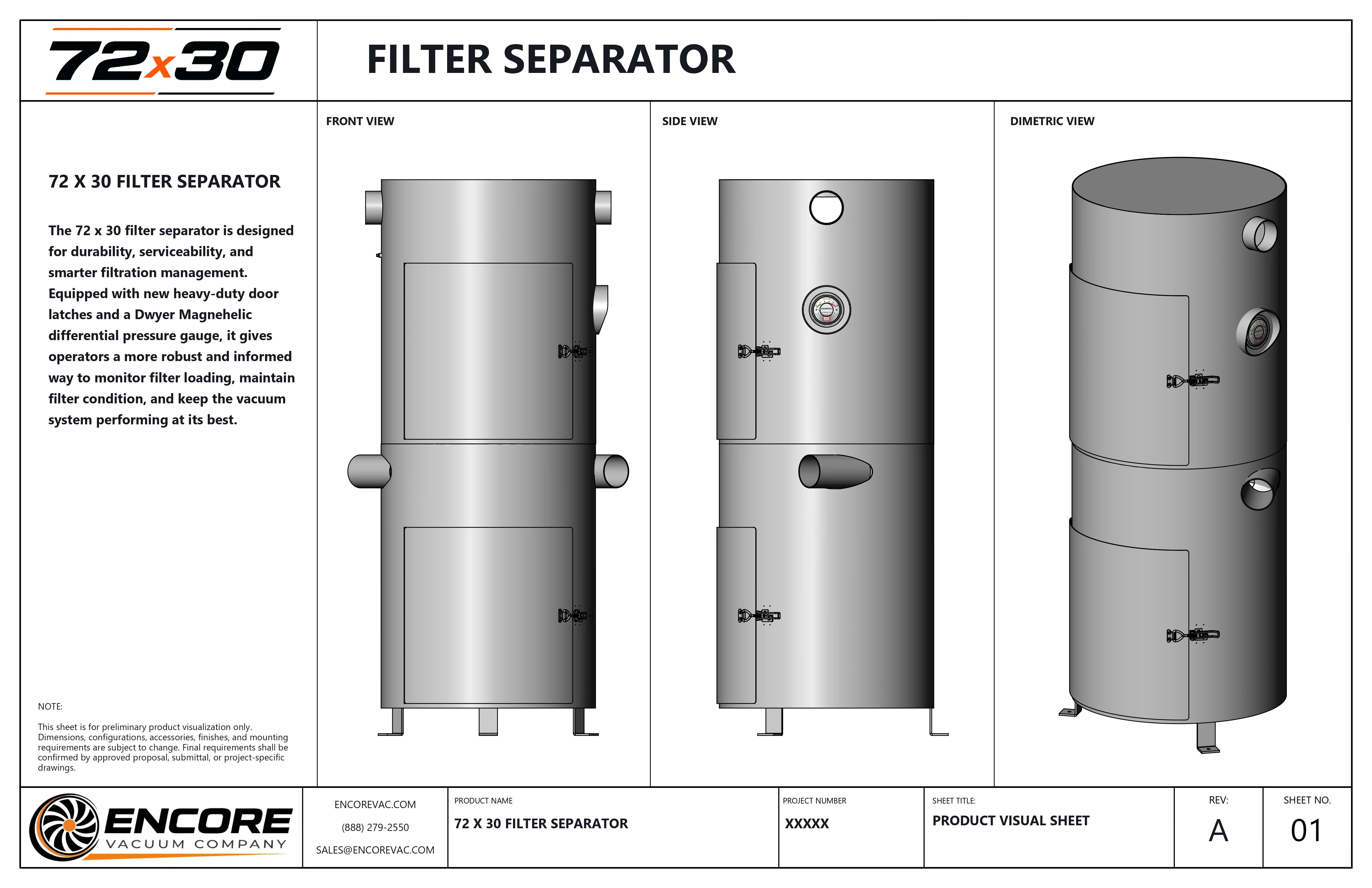

72x30 Filter Separator Visual
Heavy Duty: 72 x 30 FS

Industrial
Filtration Management.

The 72x30 filter separator is designed for durability, serviceability, and smarter filtration management. It provides operators a robust way to monitor filter loading and keep the vacuum system performing at its best.

Dwyer Magnehelic GaugeEquipped for precision differential pressure monitoring.
Heavy-Duty Door LatchesNew robust hardware for secure and reliable access.
Robust ConstructionDesigned for high-volume debris and filter management.
Operator InformedEasily monitor filter condition and loading status.

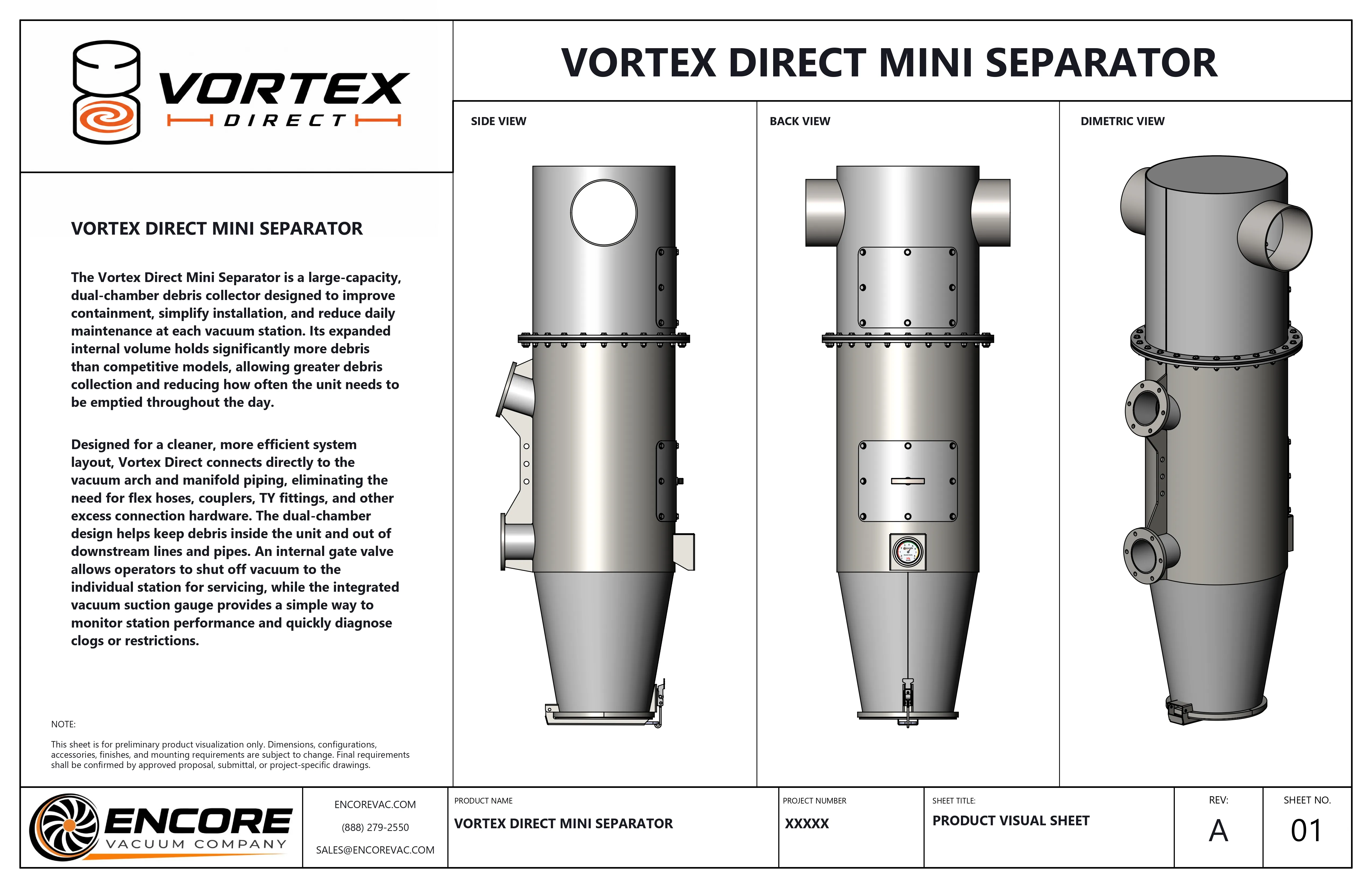

Vortex Direct Mini Separator Rendering
Point-of-Use: Vortex Direct

Large-Capacity
Station Separation.

The Vortex Direct Mini is a dual-chamber separator that connects directly to the vacuum arch. By eliminating flex hoses and extra hardware, it provides a cleaner layout and significantly higher debris capacity.

Dual-chamber design keeps debris out of downstream lines
Direct connection to manifold - no flex hoses needed
Internal gate valve for individual station servicing
Integrated suction gauge for quick diagnostics
Technical Support

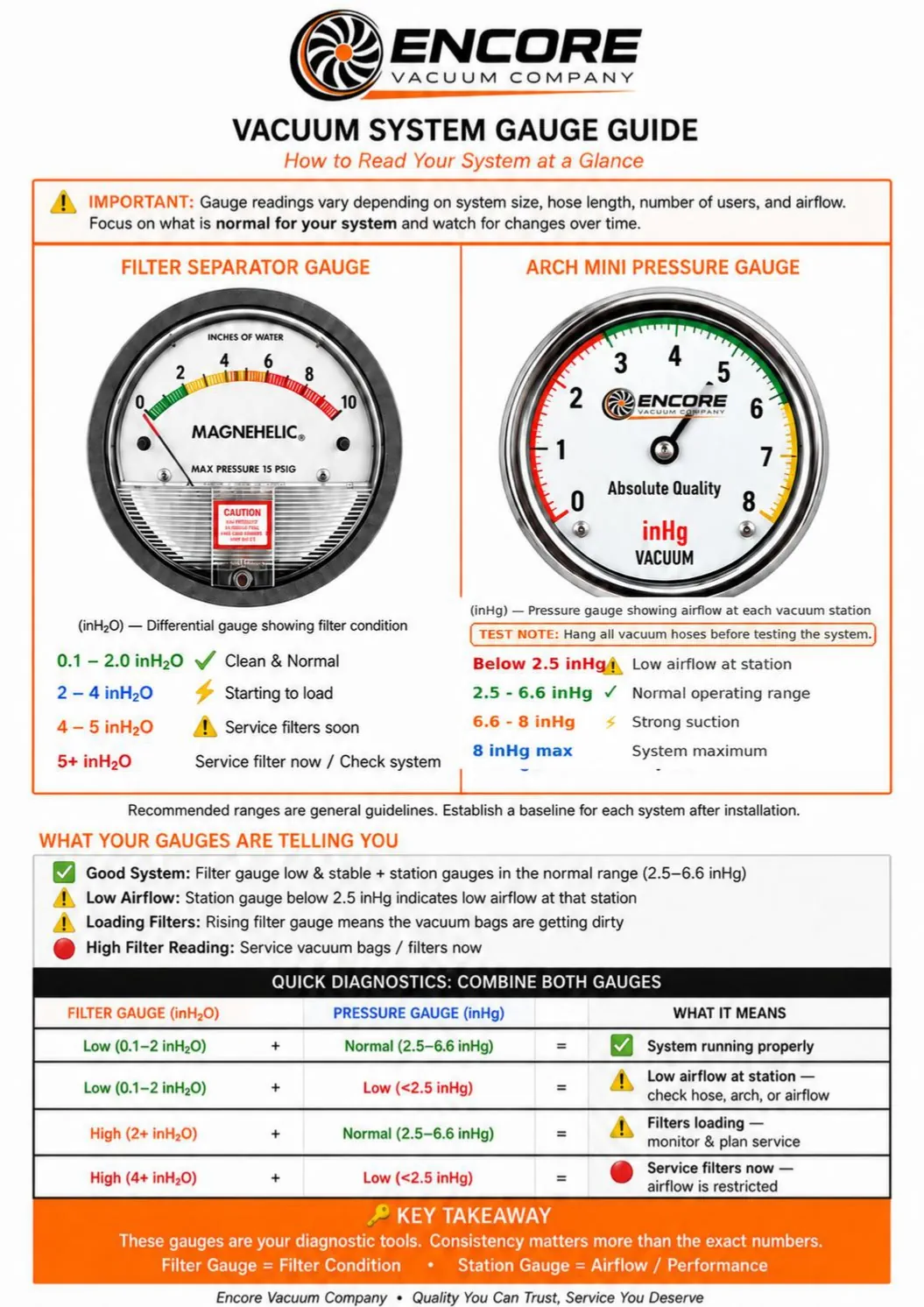

How to Read Your Gauges

Your gauges are diagnostic tools. Focus on what is normal for your system and watch for changes over time.

Gauge Guide

Quick Diagnostics

Filter Gauge+Arch Gauge=System Status
Low (0.1-2 inH2O)+Normal (2.5-6.6 inHg)=System running properly
Low (0.1-2 inH2O)+Low (<2.5 inHg)=Low airflow at station; check hose/arch
High (2+ inH2O)+Normal/High=Service vacuum bags / filters now
Preliminary Visualization Note

This sheet is for preliminary product visualization only. Dimensions, configurations, accessories, finishes, and mounting requirements are subject to change. Final requirements shall be confirmed by approved proposal, submittal, or project-specific drawings.

Maintain Peak Airflow Efficiency
